XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V

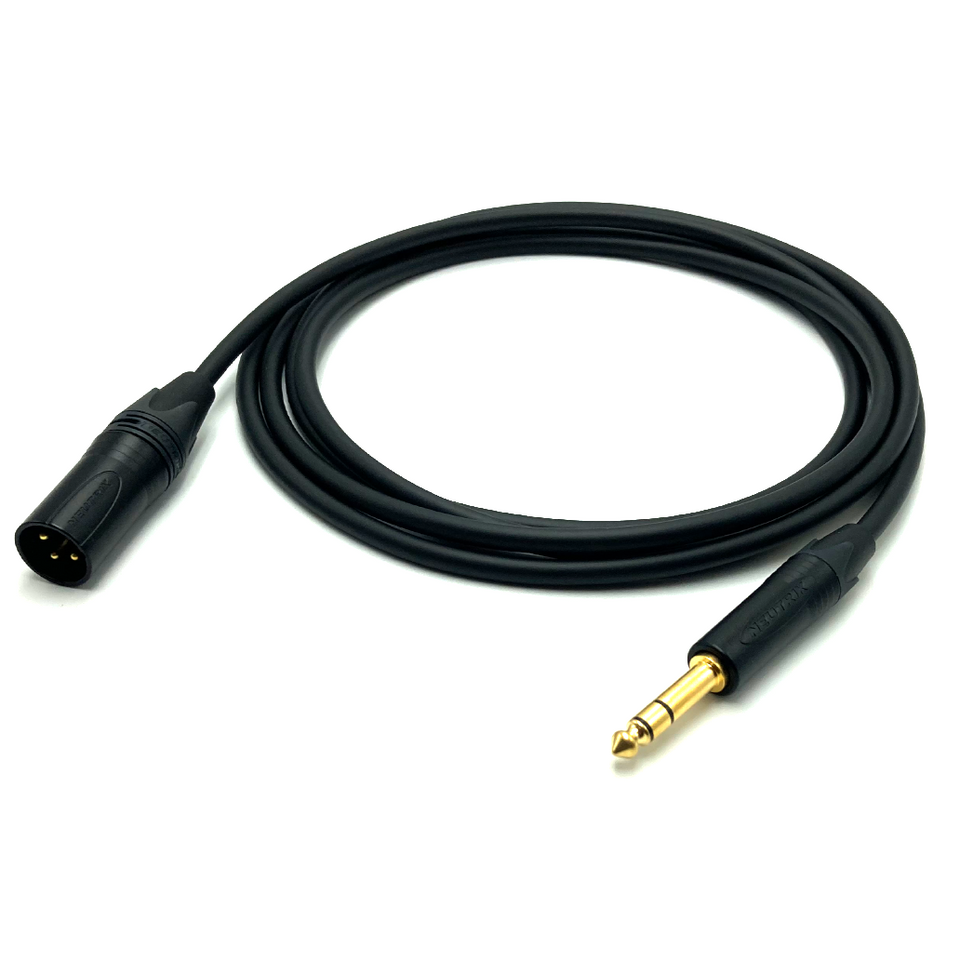

Mogami Neglex Quad Interconnect Cable - MXLR to 1/4" TRS
Mogami Quad Neglex XLR to TRS Interconnect Cable
With a history in audio cable going back to the 1970s Mogami Cable made in Nagano, Japan is well regarded for its high quality studio microphone cables. Their commitment to manufacturing excellence has firmly established Mogami audio cables as a studio essential and this is evidenced by the large number of recording facilities and professional artists that endorse their cables.

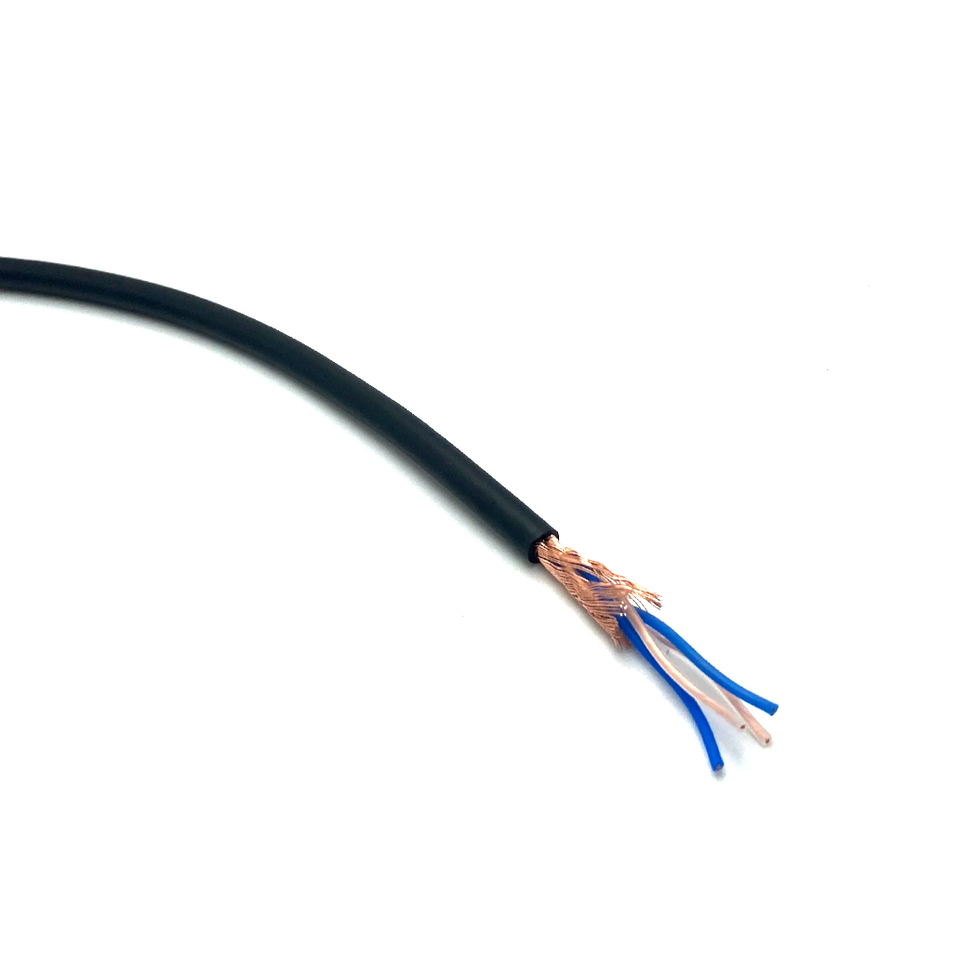

Mogami Neglex Quad is a high quality 4 conductor balanced microphone cable based on the proven star quad design that offers an improvement in signal to noise of 10-20db over equivalent twisted pair cables. Mogami W2534 Neglex Quad has a served copper shield finished in an exceptional velvet smooth PVC jacket that offers durability and great handling characteristics for recording studio applications.
High Quality Studio Interconnect Cables for Noise Rejection
A typical limitation of lower grade microphone cables is that they have cheap XLR connectors terminated with low quality solder and have minimal shielding. Our Mogami Neglex quad microphone cables overcome these limitations as we only use genuine Neutrik gold 1/4" connectors professionally terminated using high quality Kester silver solder ensuring a long life of flawless signal transmission and performance.
Custom Mogami Neglex Quad Cable
We offer this low noise interconnect cable in a variety of standard lengths as well as through our customiser app where you can design your own Mogami star quad cable and customise your cable length, connectors and colour accessories, add a heatshrink logo and long life premium cable tie.
Studios, AV integrators, installers and trade customers can contact us at info@cablesmiths.com.au for commercial quotes and volume discounts.
Product Specifications
*Some items will not render
Specifications
| Properties | Analog Audio |
| AWG | 24 |
| Outer Jacket Material | PVC |
| Handling Texture | Smooth |
| Cable Diameter (mm) | 6.00 |
| Available Colours | Black |
| Shield Type | Served |
| Shielding Factor (%) | 100 |
| Capacitance | 65 pF/m |
| Application Environments | Recording |
| Recommended Applications | Dynamic Microphones, Condenser Microphones, Balanced Interconnects |
